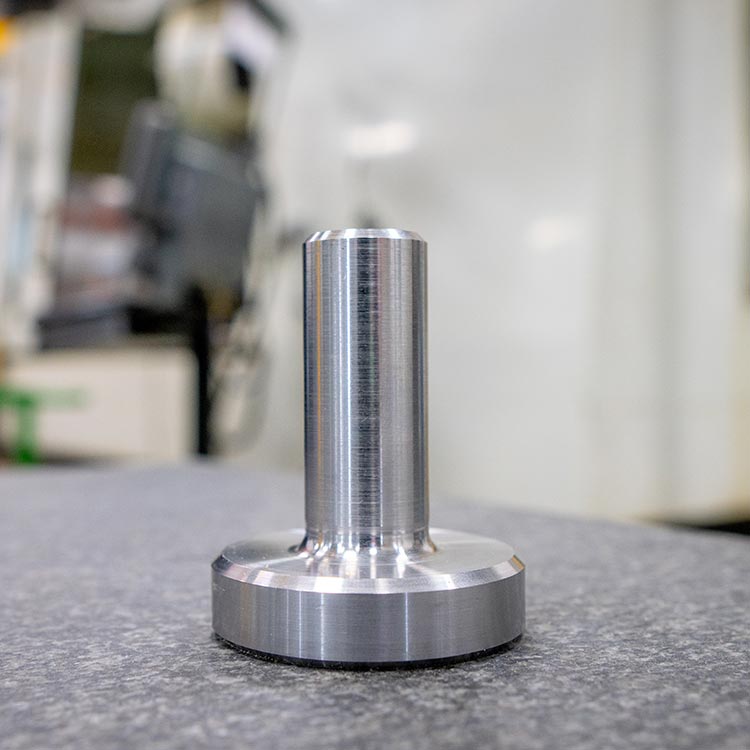

ANSI Tool Diameter Gage

by

ANSI Tool Diameter Gage
ANSI Tool Diameter Gage - Image 2
ANSI Tool Diameter Gage - Image 3
ANSI Tool Diameter Gage - Image 4

Price range: $189.00 through $819.00

  • MADE IN USA
  • Precision Ground
  • Alloy Steel
  • +/- .0001” or 0.0025mm Diameters
  • Round within .0001” or 0.0025mm
  • H6 Shank Tolerance
  • 2.50” or 63.50mm Long

Request a Quote

Name(Required)
Address(Required)
SKU: N/A Category:

Description

  • Qualifies your existing Cutting Tools
  • More Accurate than Electronic Measuring
  • Connects Digital Programming to Actual Cutting Tool Sizes
  • Reduces Cycle Runs
  • Provides Best Practice
  • Provides Operators with Greater Control of Highspeed Machining Mating Features
  • Provides Precision Boring Tool Setups
  • Phaseout Worn and Damaged Tooling
  • Benefits All Rotating Cutting Tools

Additional information

Dimensions N/A
Size

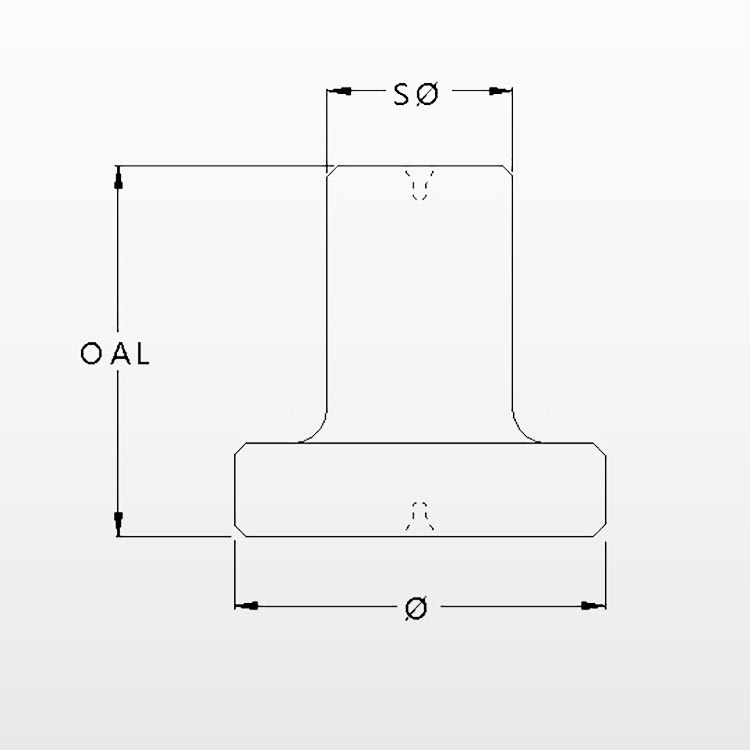

Diameter .7500 / Shank Ø .5000 / OAL 2.500, Diameter 1.0000 / Shank Ø .5000 / OAL 2.500, Diameter 1.2500 / Shank Ø .5000 / OAL 2.500, Diameter 1.5000 / Shank Ø .7500 / OAL 2.500, Diameter 2.0000 / Shank Ø .7500 / OAL 2.500, Diameter 2.5000 / Shank Ø 1.0000 / OAL 2.500, Diameter 3.0000 / Shank Ø 1.0000 / OAL 2.500, Diameter 4.0000 / Shank Ø 1.2500 / OAL 2.500, Diameter 5.0000 / Shank Ø 1.2500 / OAL 2.500, Diameter 6.0000 / Shank Ø 1.2500 / OAL 2.500

Don't see the size you need?

Request a quote: sales@slmfg.com.
